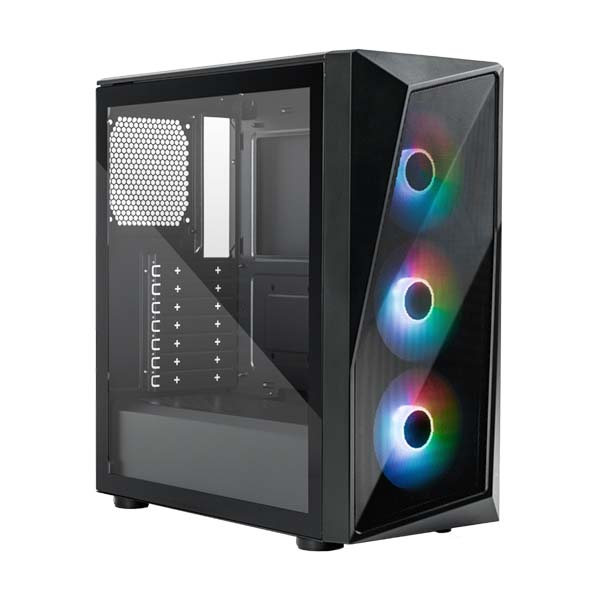

COOLER MASTER CMP 520 ARGB Mid Tower Case - Black

COOLER MASTER CMP 520 ARGB Mid Tower Case - Black

CMP 520

Cutting Edge Brilliance

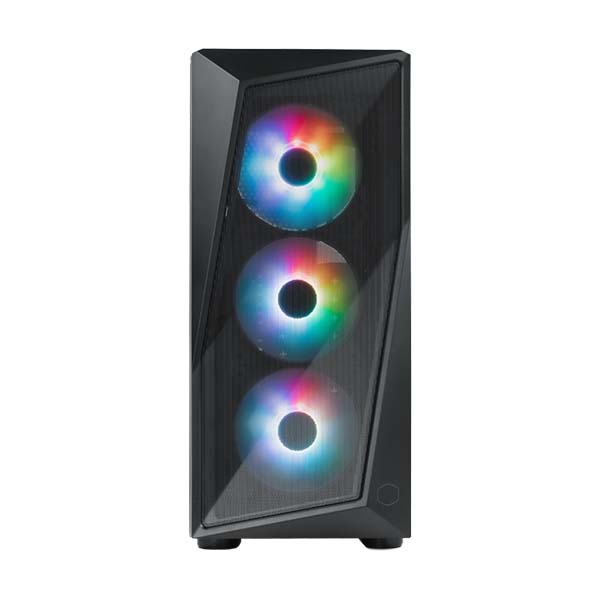

CMP 520's asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.

Three 120mm ARGB Fans Included

Three pre-installed CF120 fans ensure stunning aesthetics, eye-catching design, and thermal excellence.

ARGB/FAN HUB Included

The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

Mesh Geode Front Panel

Inspired by asymmetrical crystal formations, the mesh front panel offers generous intake and efficient dust filtration.

Versatile Cooling Options

Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.

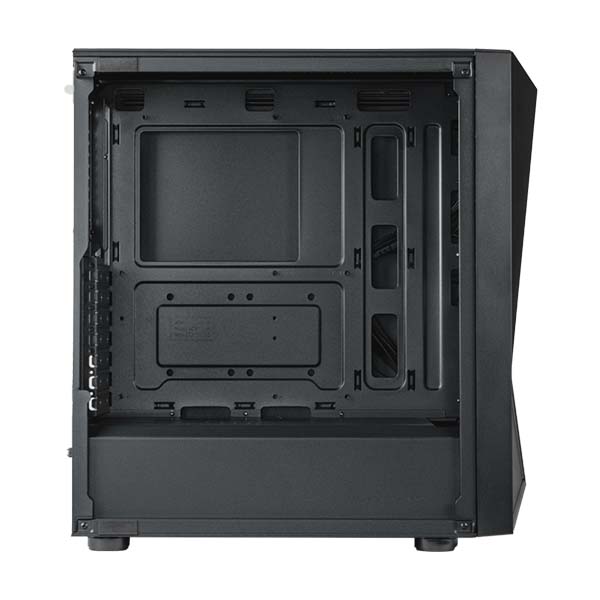

Full Black Coating & PSU Cover

Let your system stand out with an all-black background and a PSU cover to hide cables.

Room For Upgrades

Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades.

Breathable Power Supply Shroud

The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.

Specifications

• Model Number : CP520-KGNN-S00

• Exterior Color  : Black

• Materials - Exterior  : Steel, Plastic

• Materials - Left Side Panel  : Tempered Glass

• Dimensions (L x W x H)  : 439 x 204 x 463mm (Incl. Protrusions), 432 x 204 x 448mm (Excl. Protrusions)

• Volume  : 41.34L (Excl. Protrusions)

• Motherboard Support : Mini ITX, Micro ATX, ATX

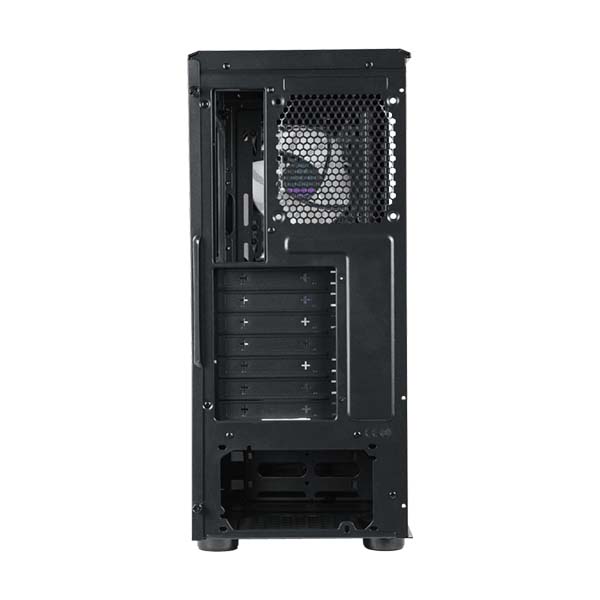

• Expansion Slots  : 7

• 2.5" / 3.5" Drive Bays (Combo): 2

• 2.5" Drive Bays  : 2

• I/O Panel  : 1x USB 3.2 Gen 1 Type-A, 1x USB 2.0, 1x 3.5mm Headset Jack (Audio+Mic)

• ARGB Controller  : ARGB Fans Hub

• Pre-installed Fans - Front  : 3x CF120 ARGB

• Fan Support - Top  : 2x 120mm, 2x 140mm

• Fan Support - Front  : 3x 120mm, 2x 140mm

• Fan Support - Rear  : 1x 120mm

• Radiator Support - Top  : 120 / 240mm* (*RAM height below 35mm)

• Radiator Support - Front  : 120mm, 140mm, 240mm, 280mm

• Radiator Support - Rear  : 120mm

• Clearance - CPU Cooler  : 161mm

• Clearance - PSU  : 160mm

• Clearance - GFX  : 350mm (w/o front fans & radiator)

• Cable Routing  : 18.5mm

• Dust Filters  : Top, Bottom

• Power Supply Support  : Bottom Mount, ATX

• Series : CMP Series

• Size : Mid Tower
