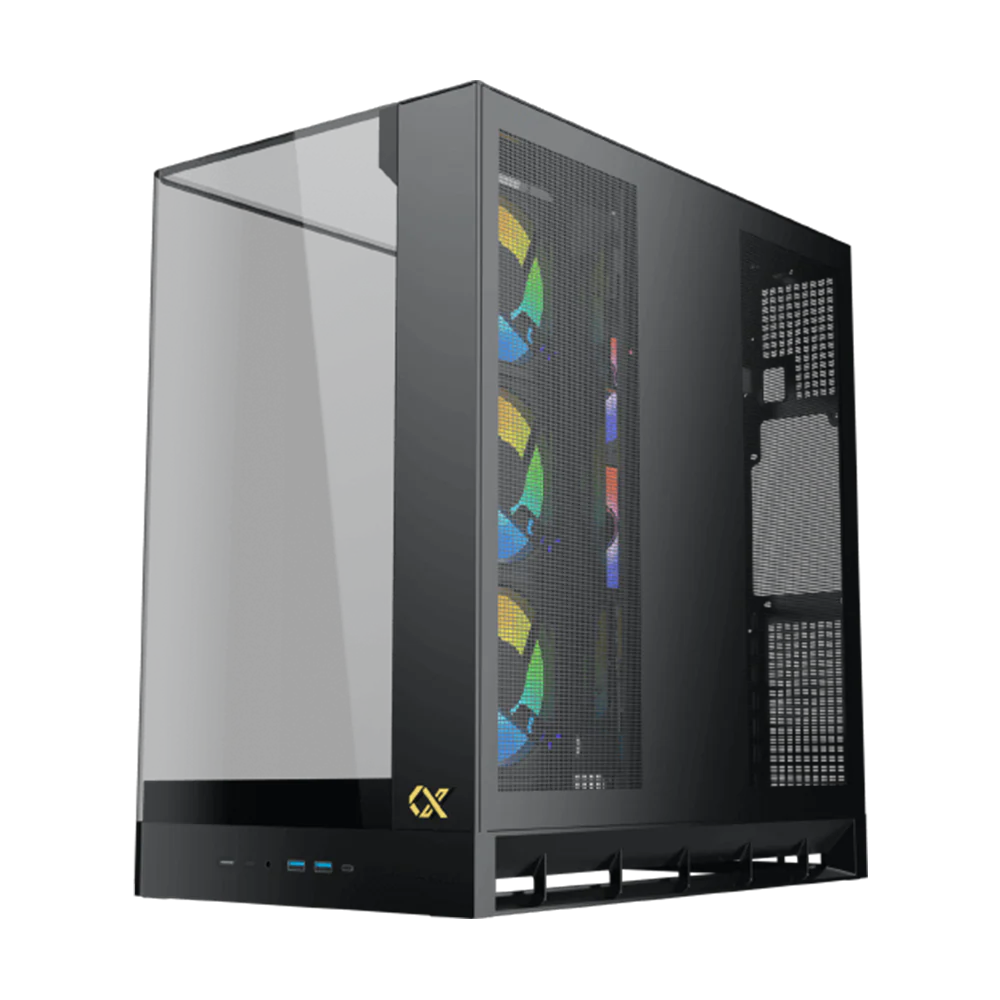

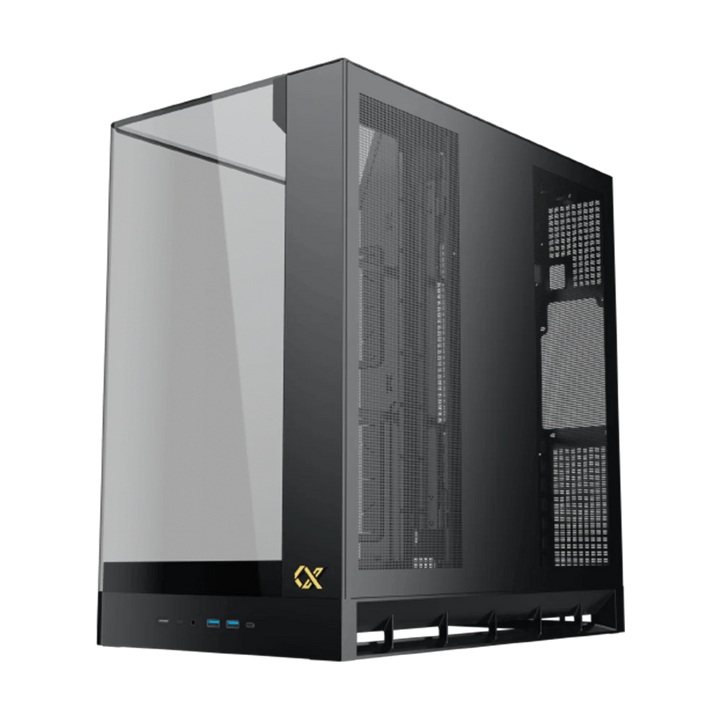

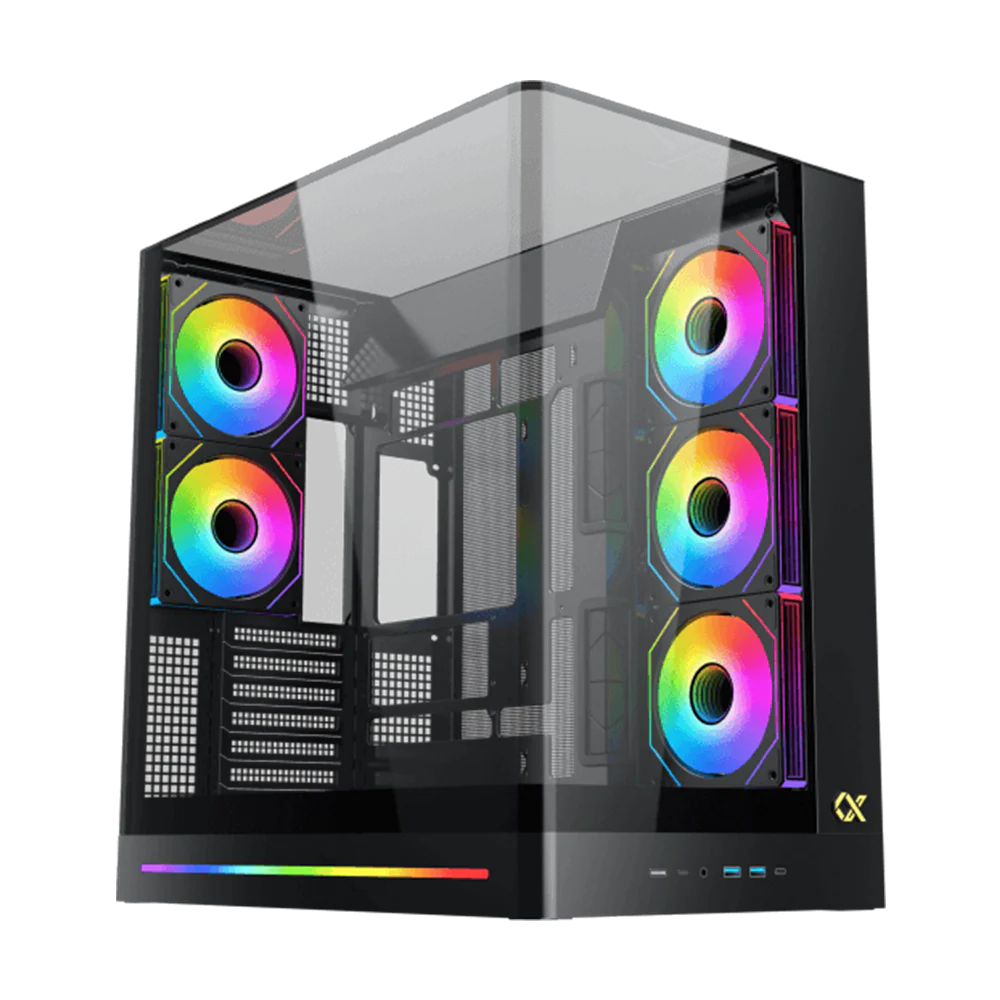

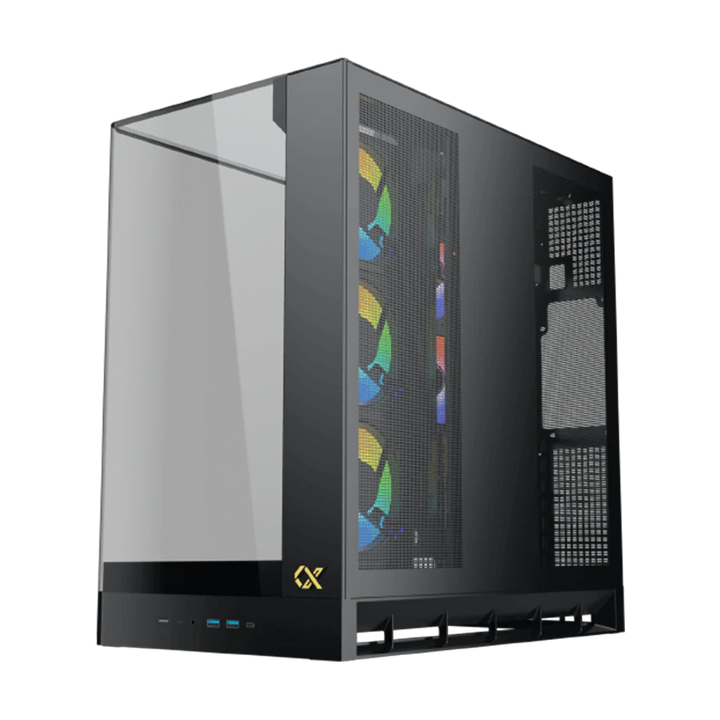

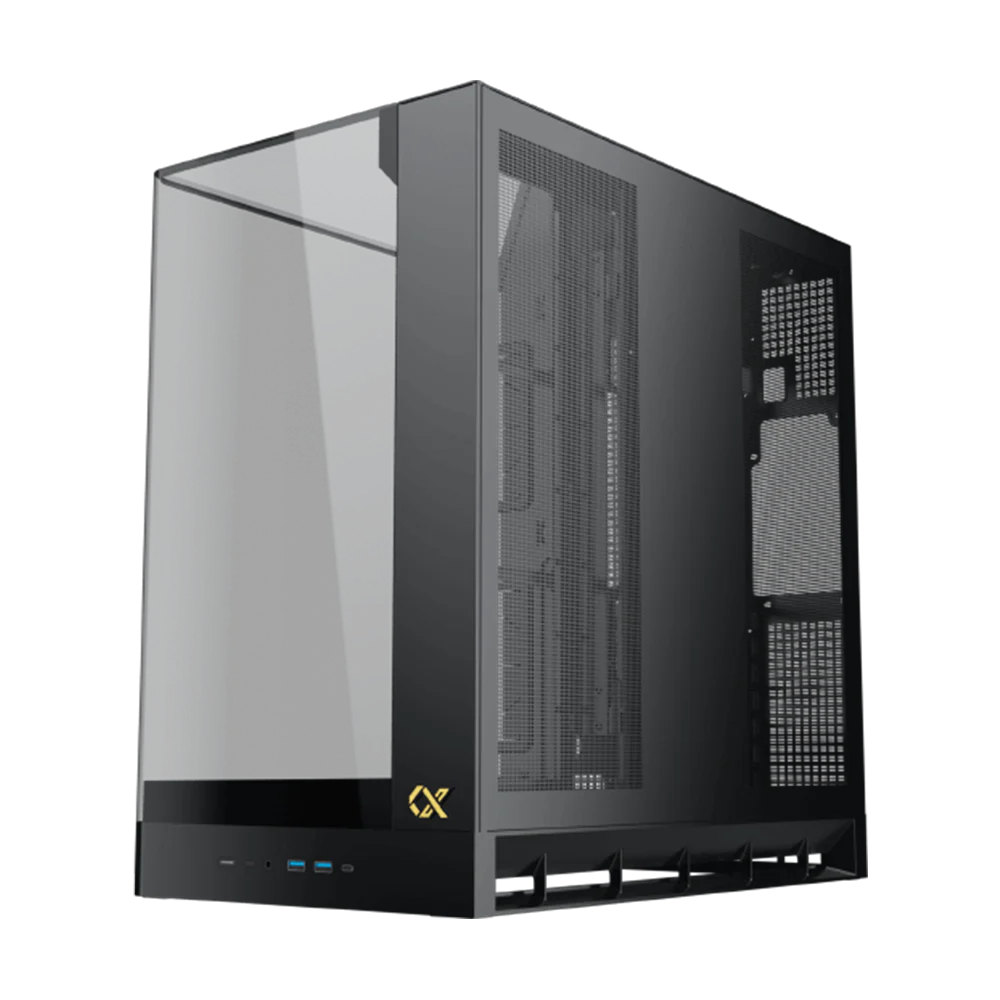

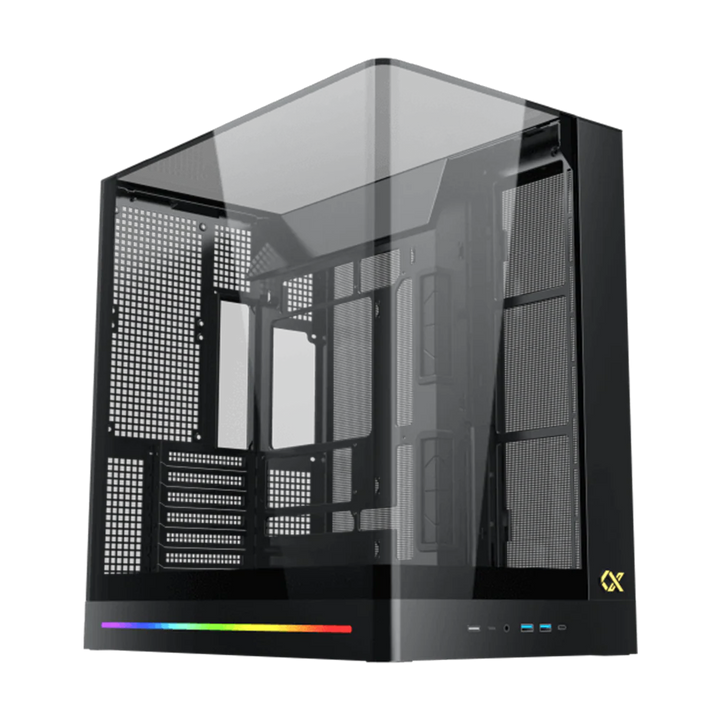

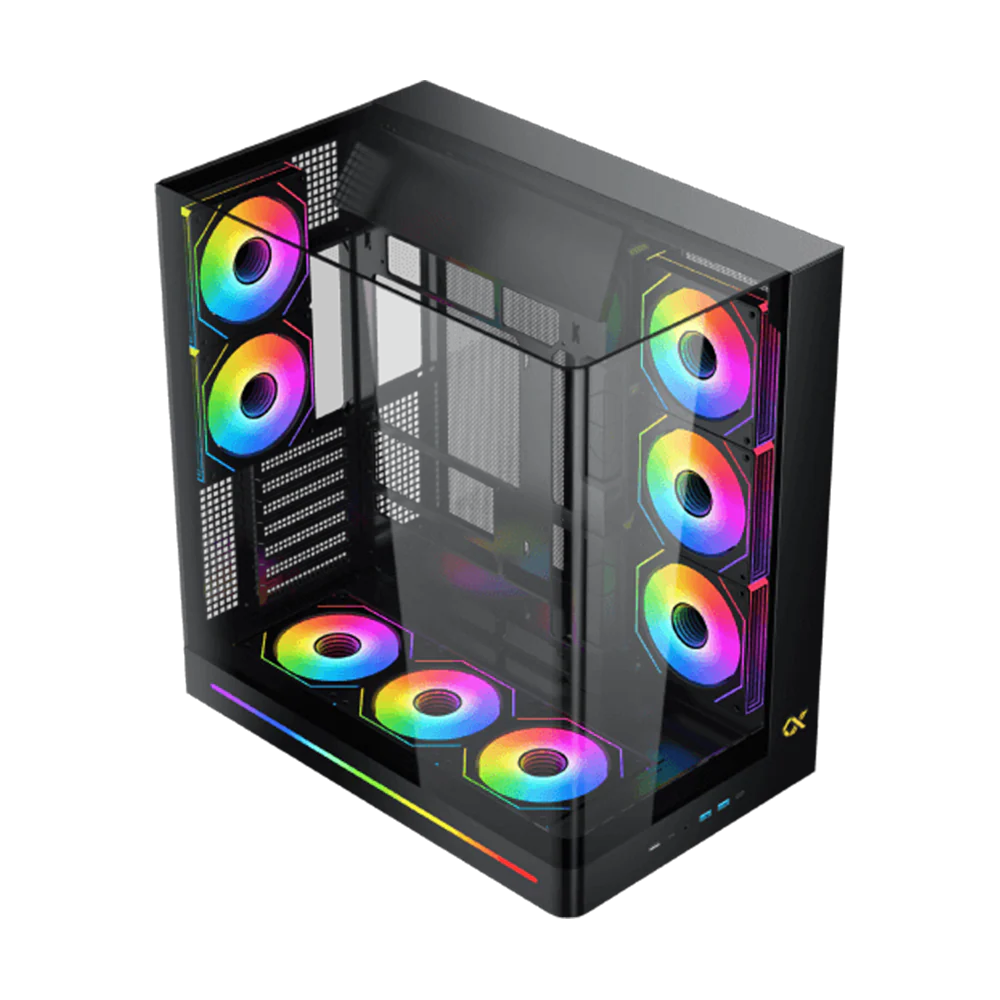

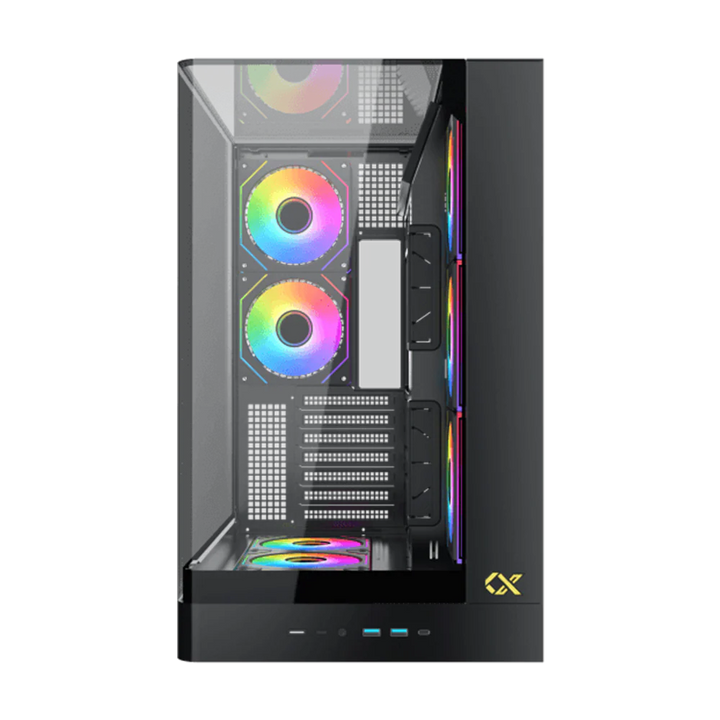

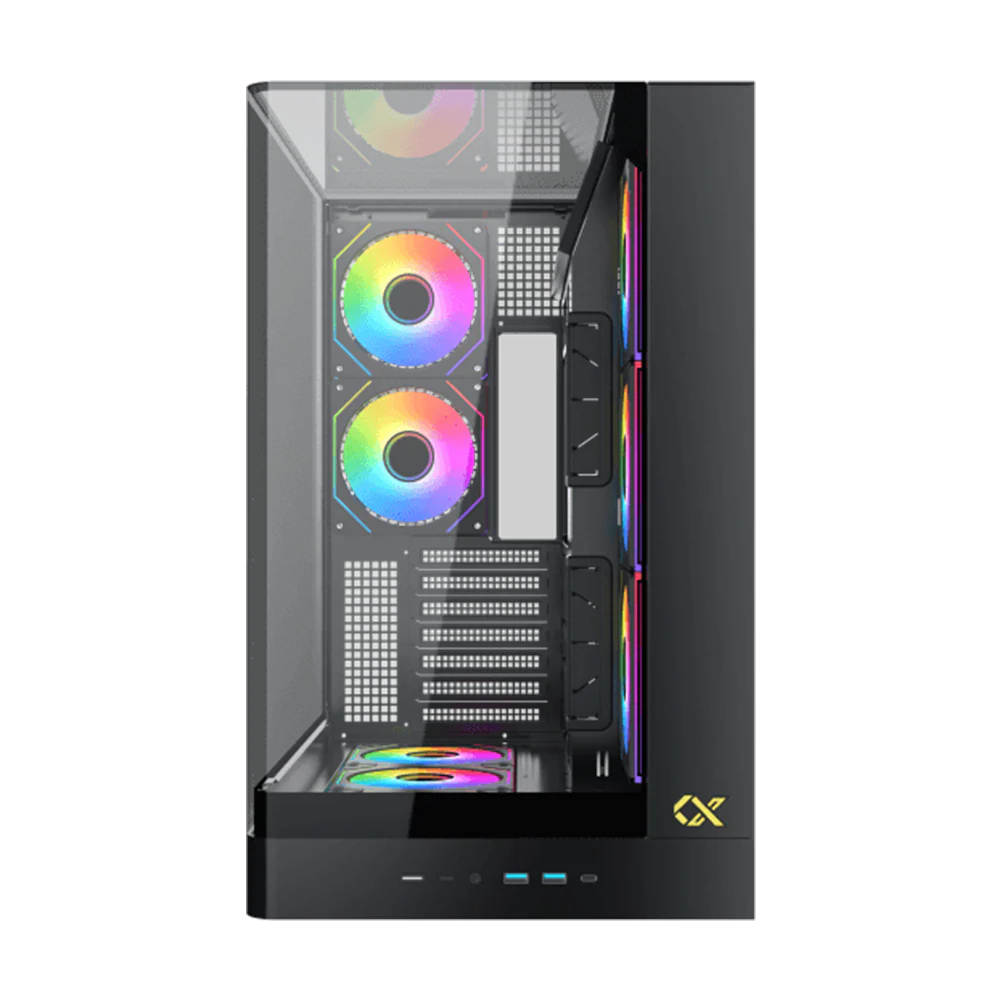

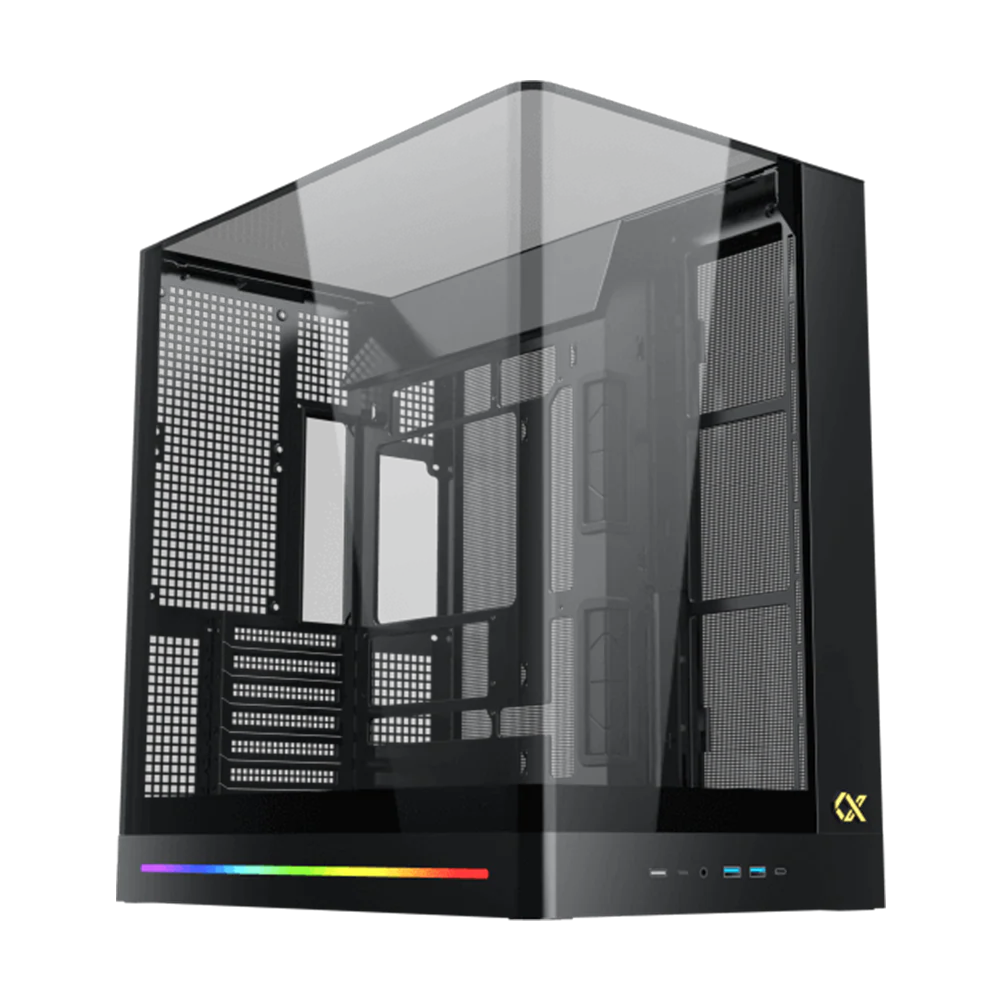

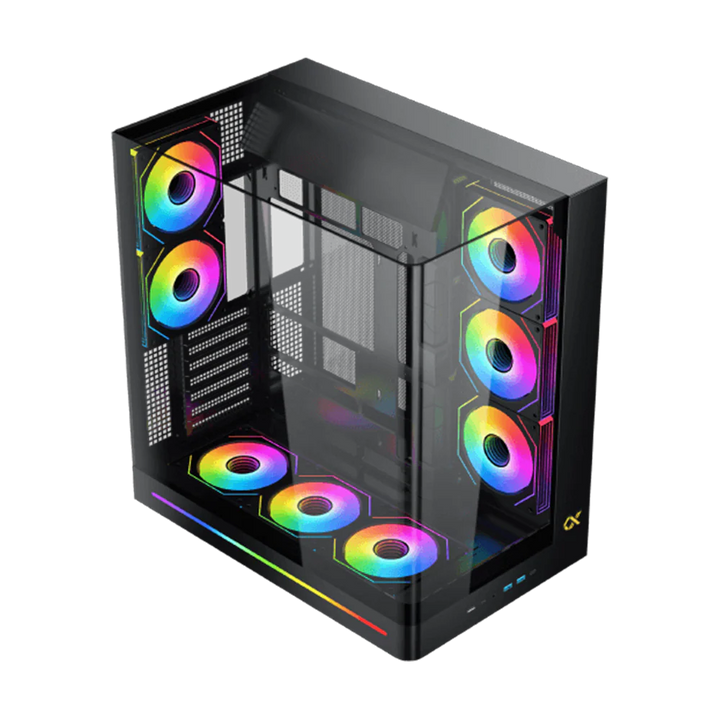

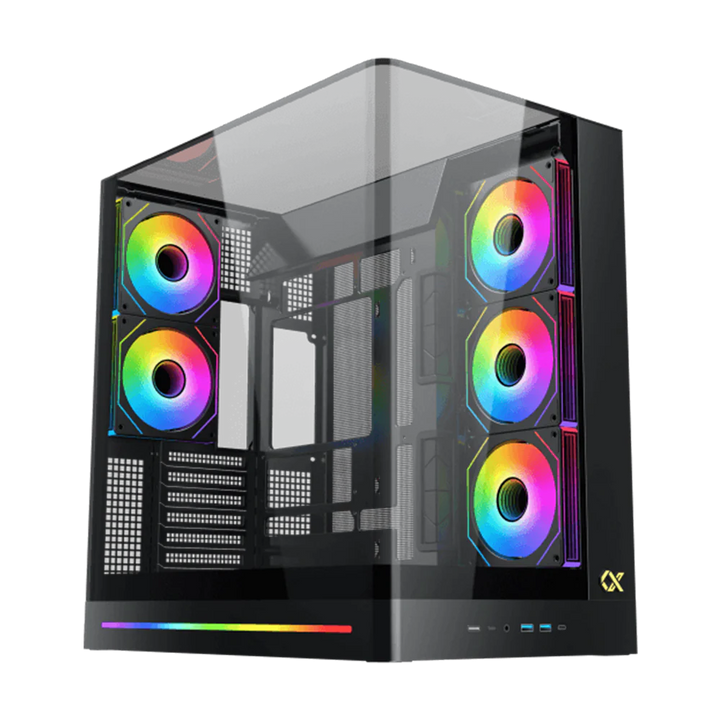

XIGMATEK PANO II Case - Black

Key Features:

• Model: Pano II (Black)
• Form Factor: ATX mid‑tower case
• Motherboard Support: ATX, Micro‑ATX, Mini‑ITX
• Pre‑installed Fans: 6× H22A Reverse ARGB fans (optimized for intake airflow with reverse blade design)
• 2× H22A ARGB fans (standard orientation for exhaust)
• Fan Support: Up to 10× 120 mm fans total
• Radiator Support:Front: up to 360 mm; Top: up to 360 mm; Rear: up to 120 mm
• ARGB & PWM Remote Control Box: Included for synchronized lighting and fan speed control

Pano II (BK,U3x2+Type C,Curved TG,6PCS H22A Reverse & 2PCS H22A,ARGB & PWM Remote Control Box).

9″Multi Display LCD Panel
(Secondary Monitor)

Support Windows 10 & 11 Multiple Display Duplicate or Extend Mode
(HDMI & USB Power Cables) Full HD+ Resolution (1920×462)

ARGB & PWM
Remote Controller

• ARGB & PWM Control Box & Remote Control
• 5V: Total 40W maximum
• 12V: Total 36W maximum
• Caution: Please Do Not Over Power the ARGB & PWM Control Box, It Is Dangerous and Might Cause Damage!

Specifications

• Product Name : Pano II
• Dimensions : 447x285x466mm (LxWxH)
• Motherboard Support : E-ATX(≤285mm)
• ATX (Support Back Plug)
• M-ATX (Support Back Plug)
• ITX
• Drive Bays : SSD/HDD Mounting Flip Cover :
• 3.5″ x2 & 2.5″ x1 or 3.5″ x1 & 2.5″ x2
• or 2.5″ x3
• Fan Support : Side: 120mm x3
• Bottom: 120mm x3
• Rear: 120mm x2
• PSU Length Limitation : 165mm
• CPU Cooler Clearance : 165mm
• Material : Steel
• Power Supply : Standard PS2 ATX PSU
• Expansion Slots : 7 Standard Slots
• I/O Panel : USB-C
• USB3.0 x2
• HD Audio
• Radiator Support : Side: 240/360
• Rear: 120
• GPU Length Limitation : 400mm
• (Support GPU Horizontal or
• Vertical Installation,
• Vertical GPU Bracket Included)
